Ventilation Louvers & Louverd Systems
Engineered aluminium and galvalume ventilation louvers compliant with IS 12433 and EN 13030. Water rejection efficiencies up to 99% at design wind velocities. Available in custom blade profiles, anodized or powder-coated finishes, from 600mm to 3600mm width.
Industrial

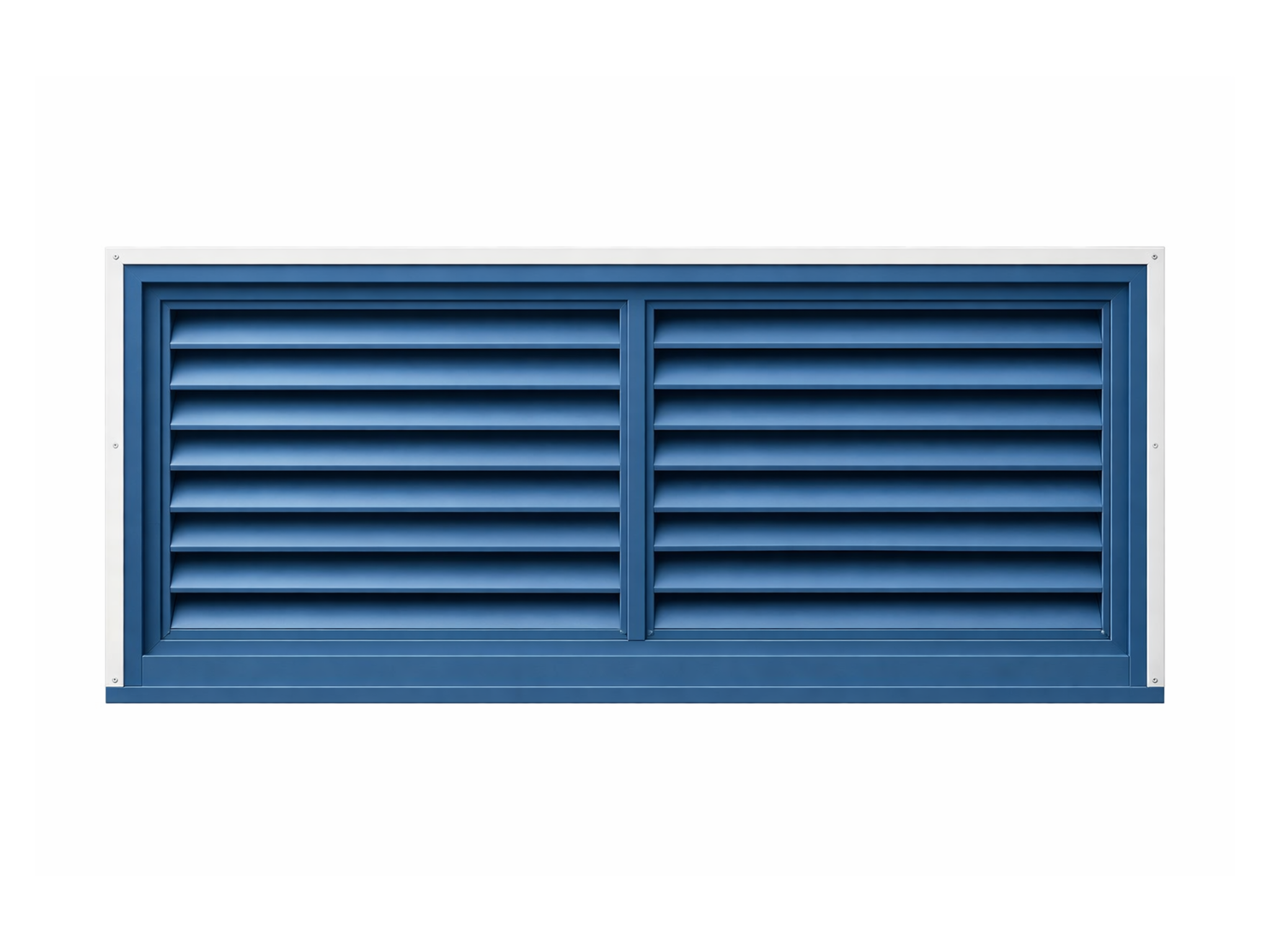

PEB Industrial Shed Louvers
Heavy-Duty Ventilation for Pre-Engineered Buildings
Designed to withstand harsh weather while ensuring continuous airflow in manufacturing facilities and industrial warehouses.
HVAC

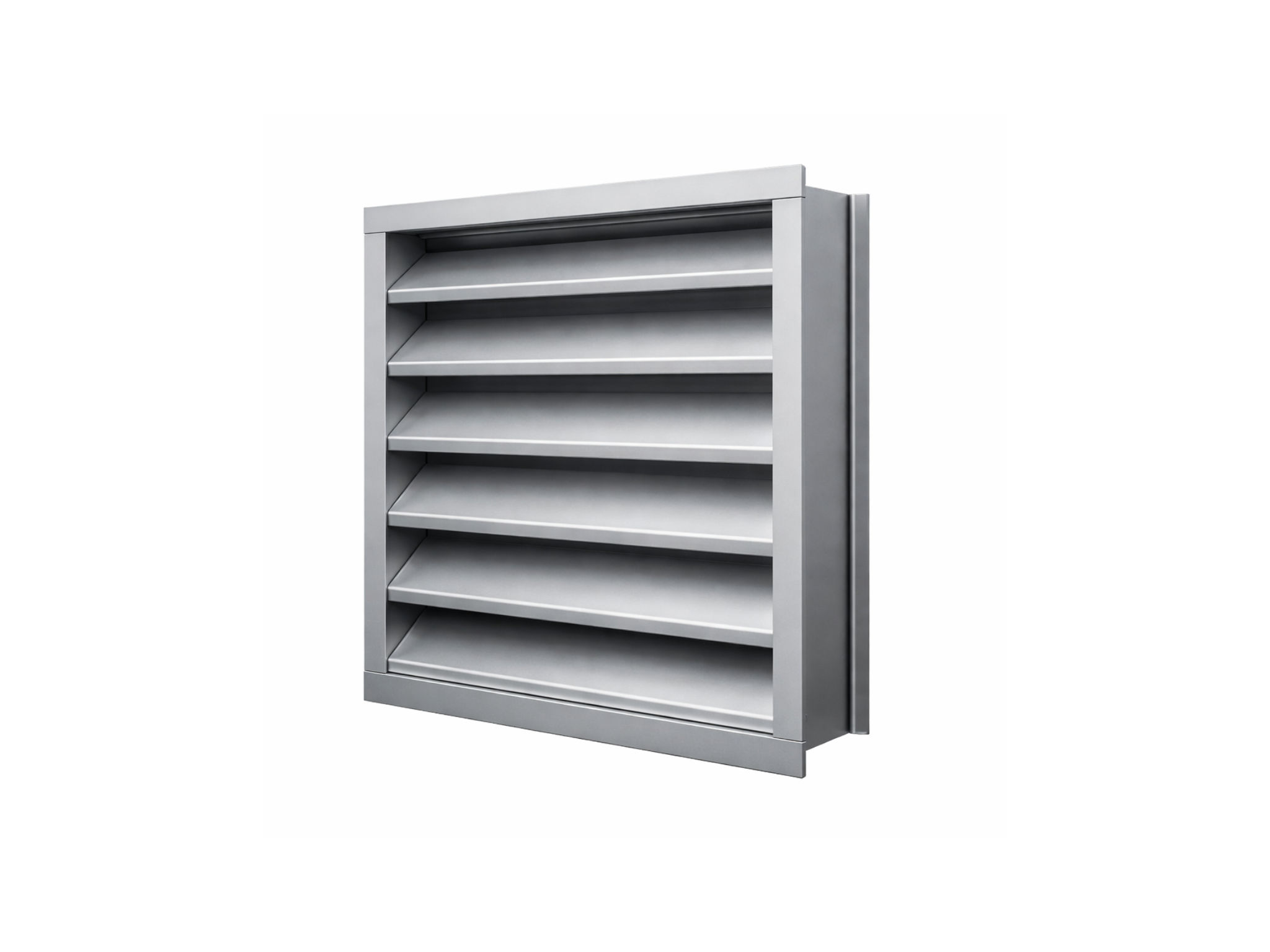

Fixed Ventilation Louvers
Stationary Blade Systems with Water Drainage
Consistent ventilation with built-in water drainage channels. Ideal for commercial HVAC applications requiring reliable weather protection.
Motorized

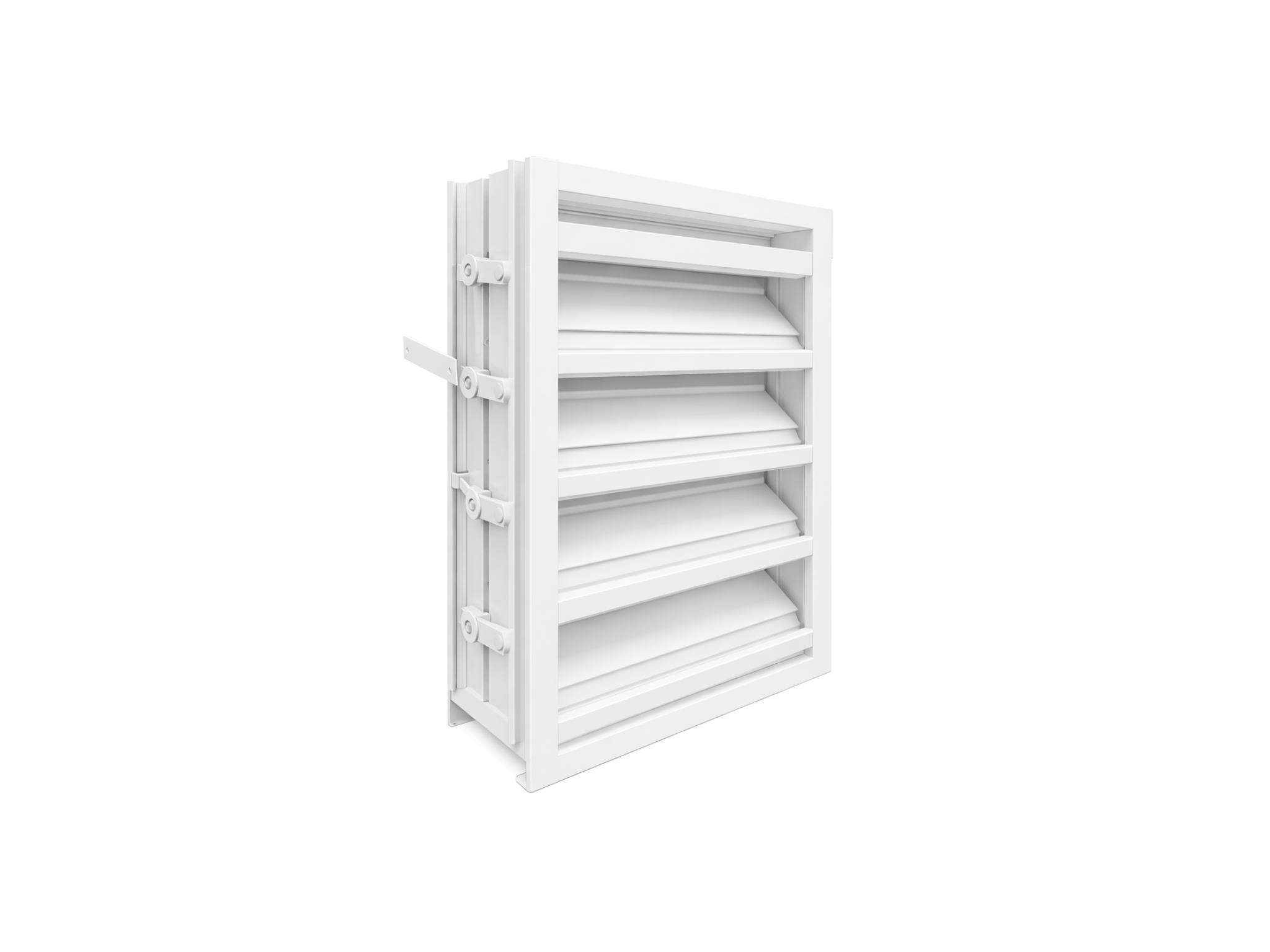

Heavy Duty Louvers
Motorized or Manual Blade Control
Variable airflow regulation with motorized or manual blade control. Perfect for buildings requiring dynamic ventilation management and energy efficiency.
Acoustic

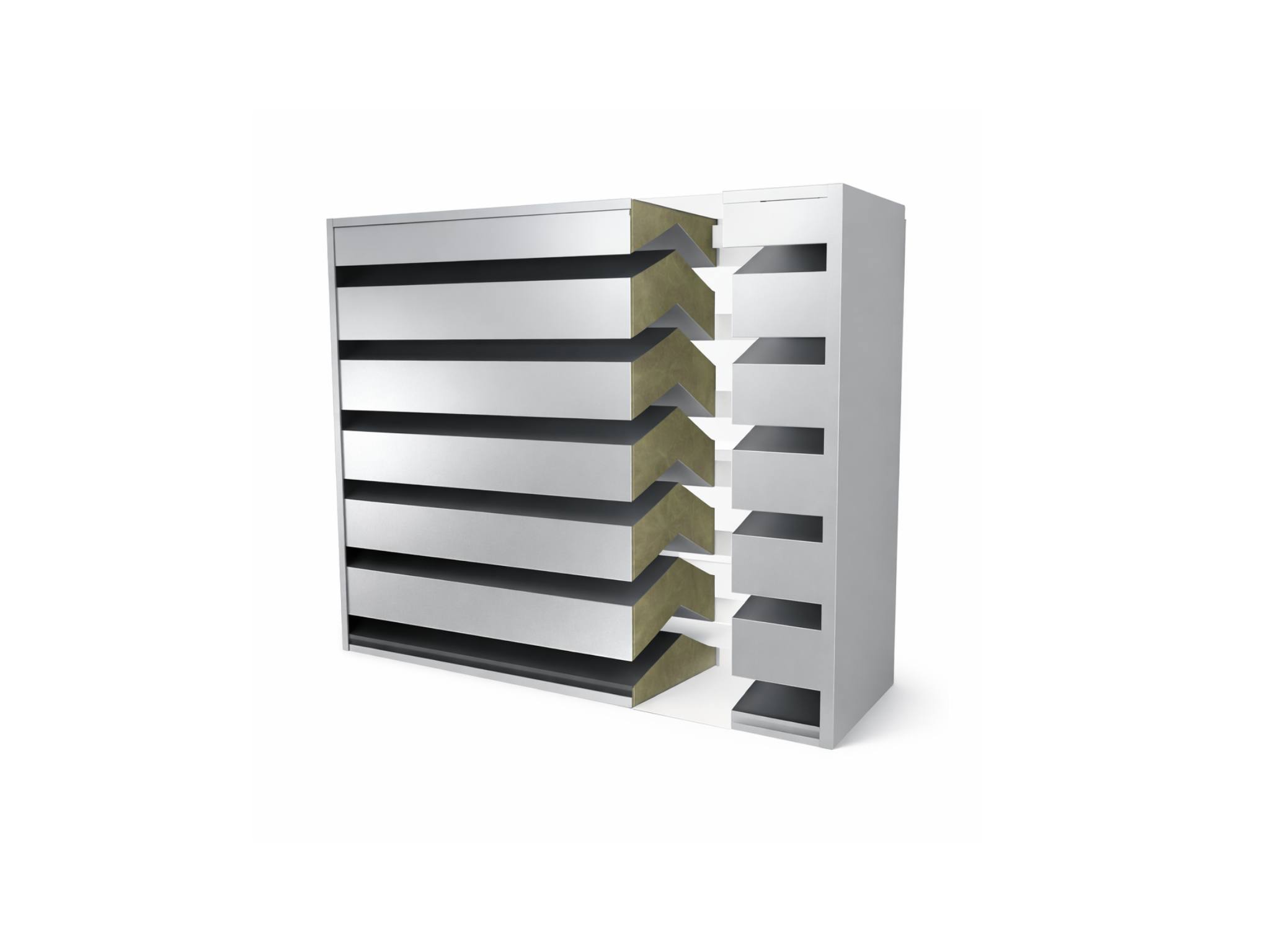

Acoustic Louvers
Sound-Attenuating Ventilation Systems
Combines airflow efficiency with superior acoustic performance for noise-sensitive environments like hospitals, data centers, and studios.
Desert

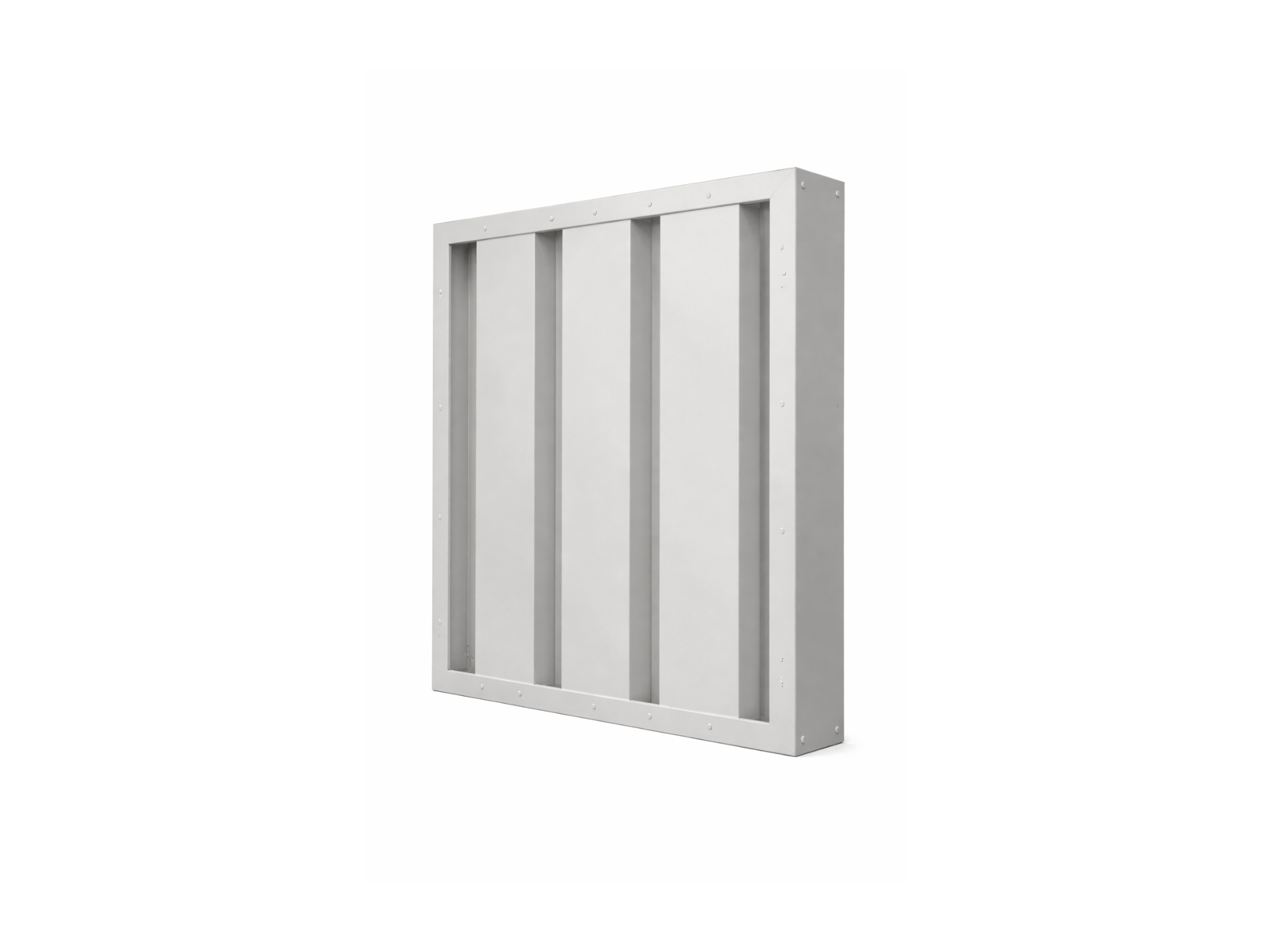

Sand Trap Louvers
Specialized Blade Geometry for Arid Regions
Prevents sand and dust ingress in desert environments. Essential for Middle East projects and industrial sites in arid regions.
Storm Rated

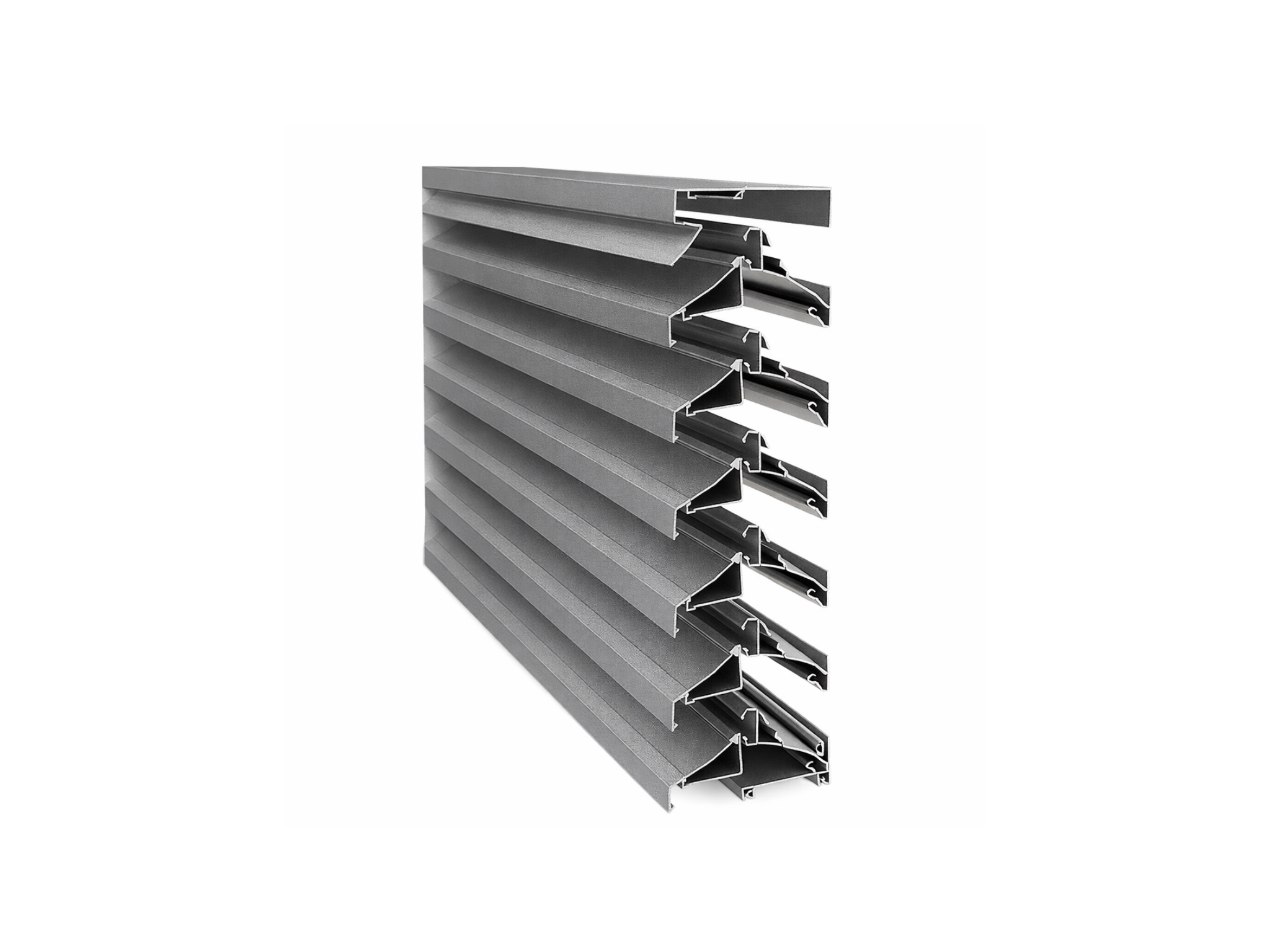

Storm Resistant Louvers
High-Wind Rated for Cyclone & Hurricane Zones
Tested for hurricane and cyclone zones. Engineered for coastal installations requiring maximum weather protection against extreme conditions.
Rainproof

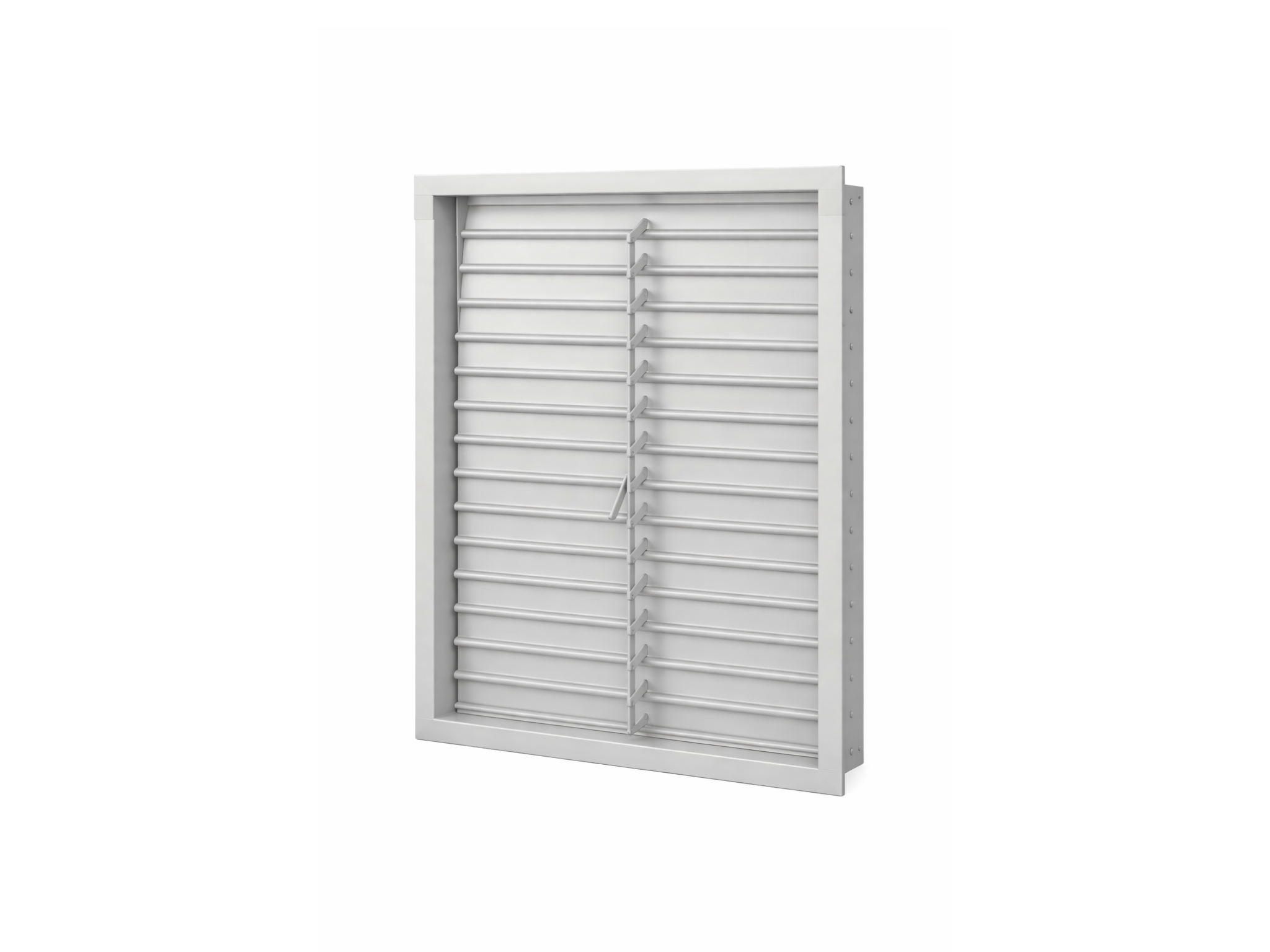

Gravity Louvers
Multi-Stage Water Separation with Internal Drainage
Prevents water penetration in high-rainfall areas while maintaining airflow efficiency. Internal drainage gutters ensure superior performance.
Architectural

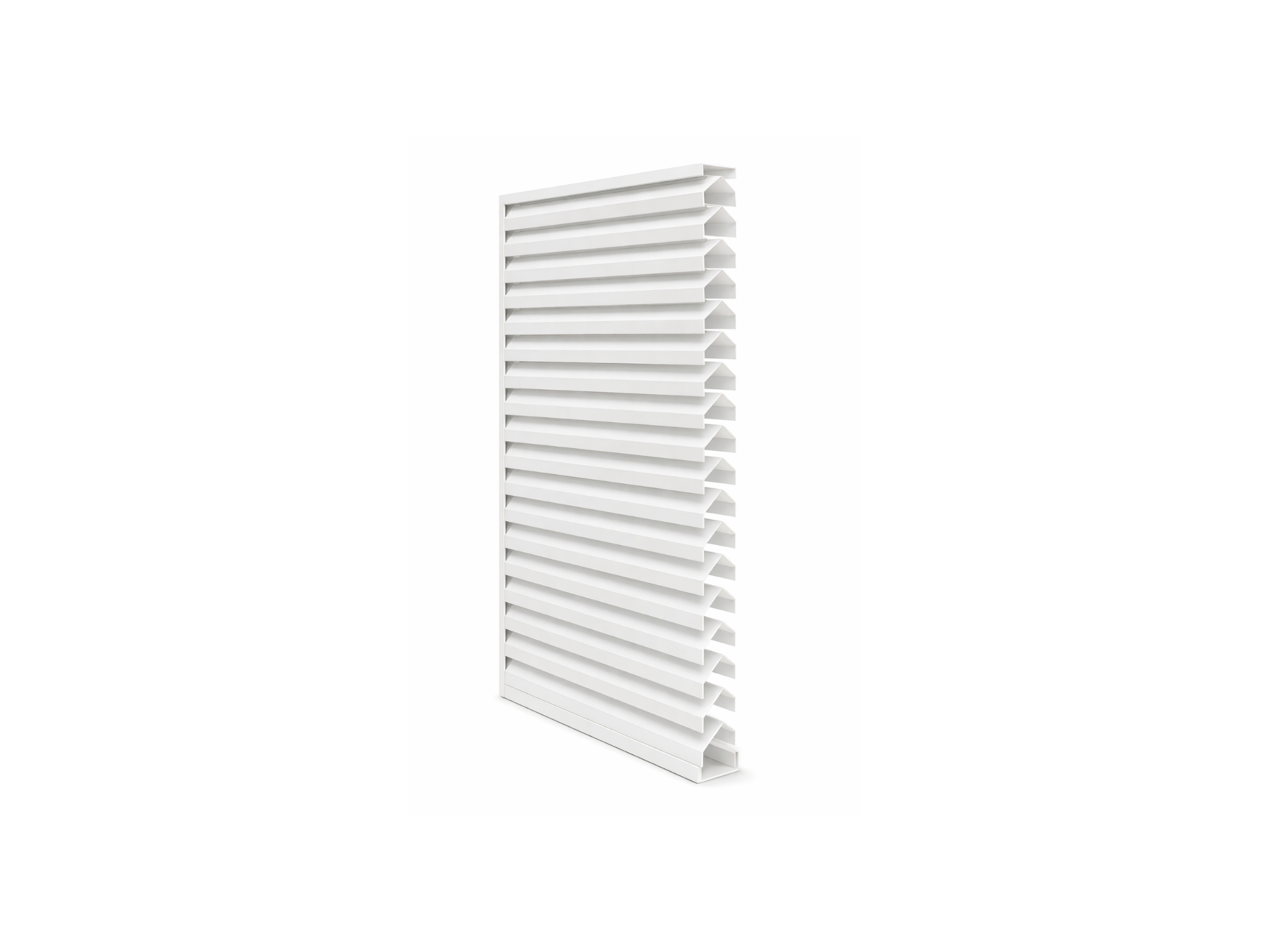

Non Vision Louvers
Equipment Screening with Ventilation Performance
Architectural louvers for rooftop mechanical equipment screening. Combines ventilation performance with clean aesthetics for commercial.
Dual Purpose

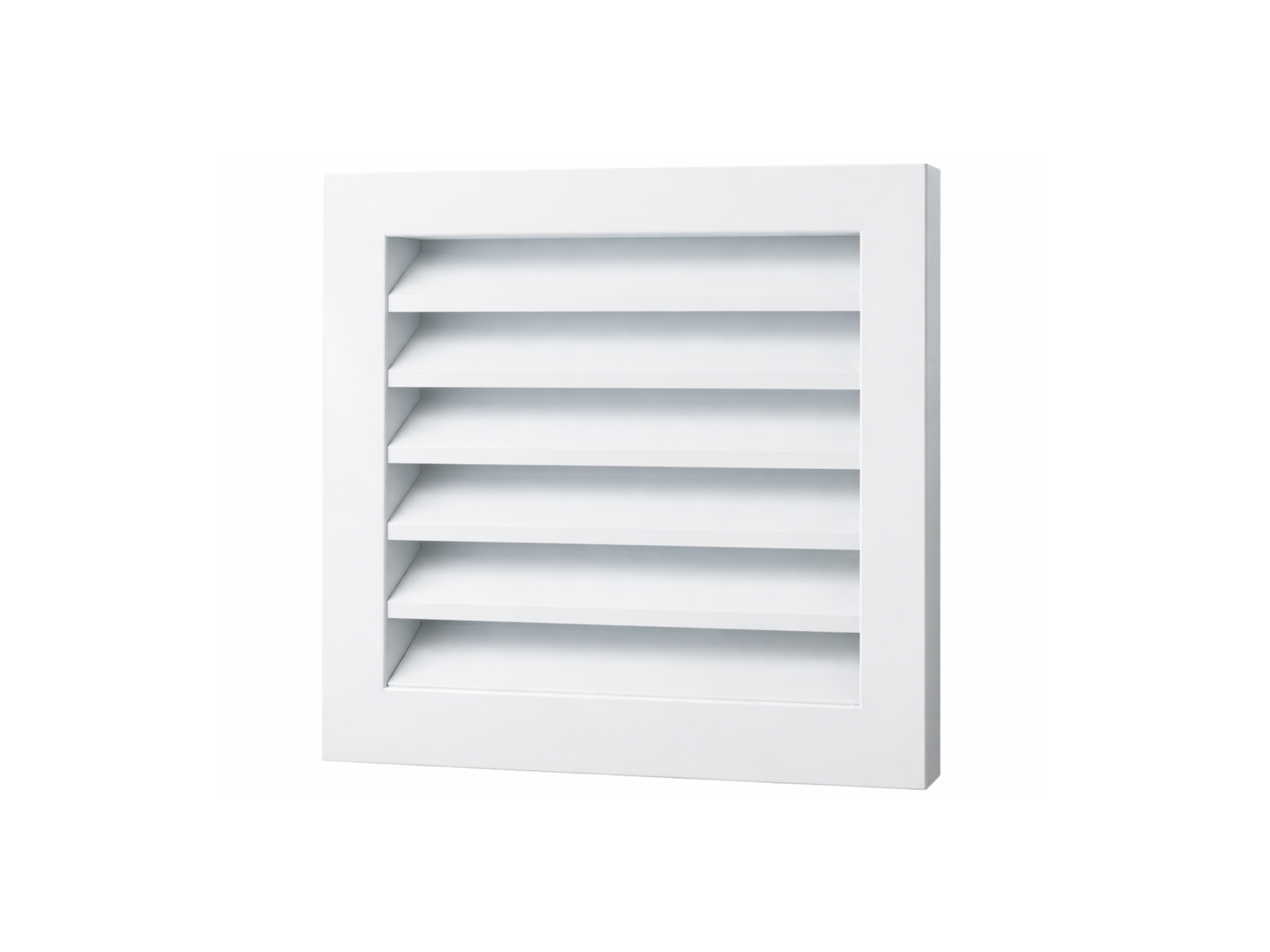

Aluminium Intake/Exhaust Louvers
Separate Intake & Exhaust Sections
Dual-purpose systems maximizing ventilation efficiency for mechanical rooms and equipment enclosures. Lightweight aluminium construction.
All LOUVERS CERTIFIED
Every louver system is tested and certified by BS Standards for air performance, water penetration resistance, and structural integrity. Available in custom sizes with powder coating, anodizing, or mill finish options.
Technical Specifications
Standard parameters — all products manufactured to project-specific custom dimensions.
| Primary Material | Aluminium 6063-T6 / Galvanized / Galvalume® |
| Blade Thickness | 0.5mm – 4mm (material specific) |
| Frame Depth | 50mm – 300mm (application specific) |
| Max Section Width | Up to 1200mm (modular assembly) |
| Water Penetration | Zero penetration at ≤4 m/s (EN 13030) |
| Air Resistance Class | A–E per EN 13030 |
| Surface Finish | Powder coated (RAL), Painted, Mill finish |
| Fastening | Concealed clip / Structural sealant / Bolt-fixed |
Standards & Compliance
- IS 12433 Ventilation Louvers — Dimensions & Performance
- EN 13030 Air Performance — Water Penetration Testing
- EN 13030 Air Terminal Performance Classification
- IS 875 Pt.3 Wind Load Compliance
- ISO 9001:2015 Quality Management System
Applications by Sector
Require AMCA-Certified Ventilation Louvers for Your Project?
Submit your project specifications — our engineers will recommend the correct louver series, blade depth, and free area percentage for your airflow and water rejection requirements.
