Fire, Smoke & Volume Control Dampers — UL-Certified
Life-safety and airflow control dampers manufactured under strict UL 555 / UL 555S protocols. Suitable for fire-rated partitions, smoke control corridors, and pressurisation systems in critical infrastructure.
Class 1

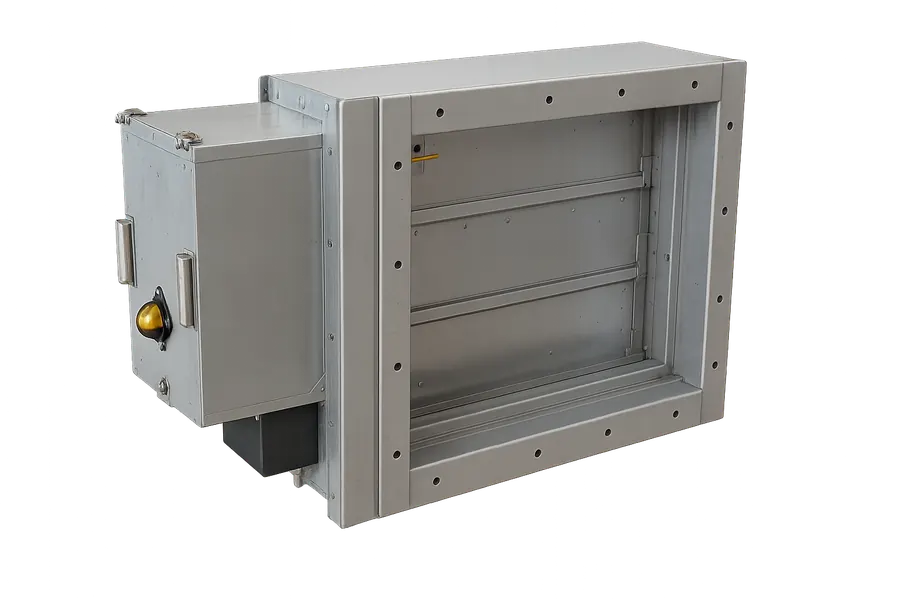

Gas Tight Dampers
Class 1 Zero-Leakage Sealing
Class 1 leakage dampers for absolute air and gas sealing where leakage cannot be tolerated — special seals and robust construction for high pressure, temperature and hazardous conditions.
Life Safety
Fire Dampers
UL-555 Rated Fire Barrier Dampers
Fire-rated dampers that maintain the fire integrity of ducts penetrating fire barriers. Available as fusible-link, motorized, fire & smoke, curtain type and CBRI / UL-555 approved variants.
Control
Low Leakage Control Dampers
Precision Low-Leakage Control
Precision control dampers with superior closed-position sealing (Class 1A low leakage) for energy-efficient HVAC and critical environmental control applications.
Control
Volume Control Damper
Manual & Motorized Zone Balancing
Multi-blade dampers for regulating and balancing airflow across supply, return and exhaust ducts. Manual quadrant or motorized actuator for BMS integration.
Control

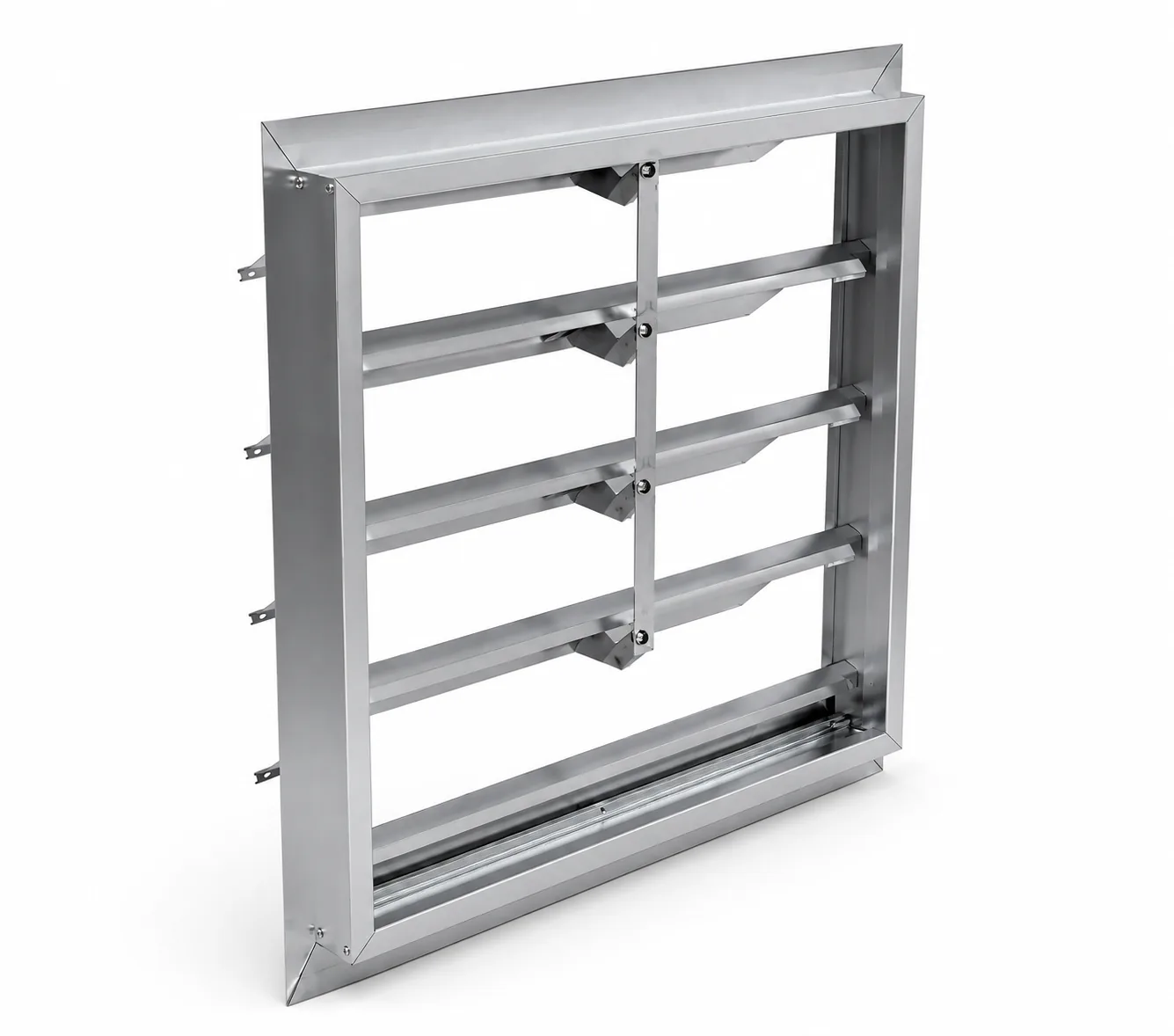

Backdraft / Non-Return Damper
Gravity One-Way Airflow
Gravity or spring-assisted dampers that let air flow one way and close automatically to prevent reverse draft and backflow when the fan stops.
Control
Aerofoil Blade Damper
Low-Leakage Aerodynamic Blades
Extruded airfoil blades give precise modulating control with minimal pressure drop and low noise. Class 1A low-leakage sealing for energy-efficient air handling.
Control
Opposed & Parallel Blade Damper
Multi-Blade Volume Control
Opposed blades for linear modulating and mixing; parallel blades for two-position and zone balancing in HVAC ductwork.
Life Safety

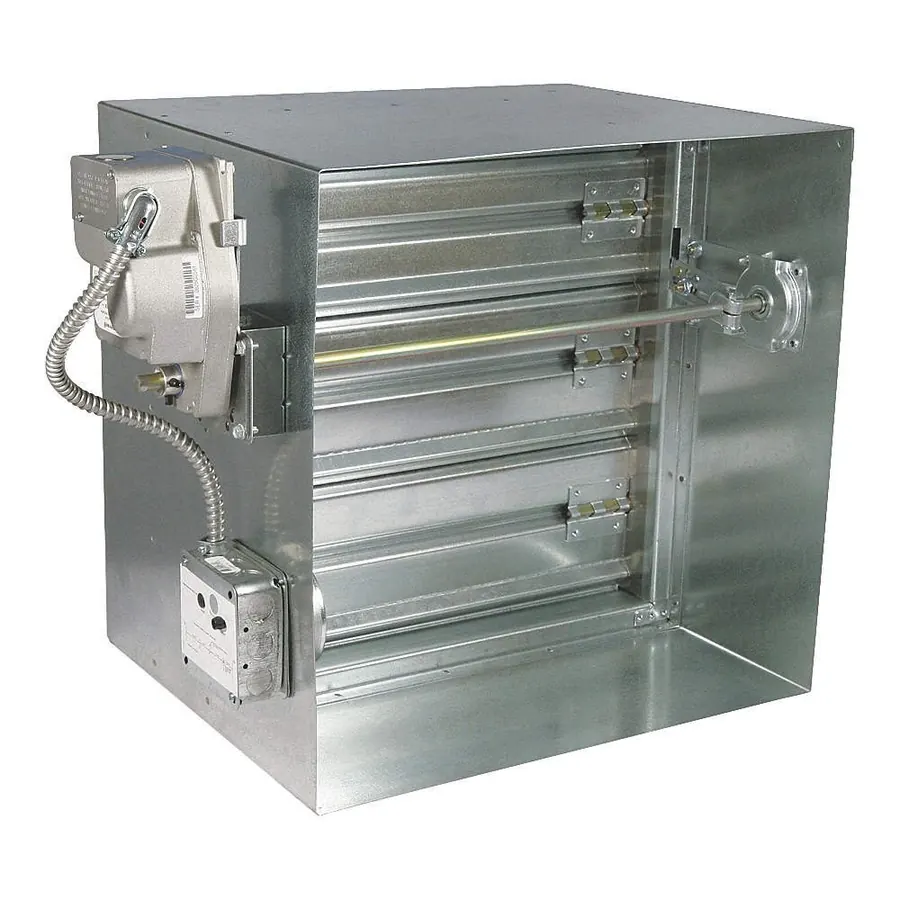

Fire & Smoke Damper
UL 555 / 555S Dual-Rated
Combination dampers providing fire-barrier integrity and smoke control, driven by a motorized actuator with fusible link and smoke-detector interface for life-safety systems.
Life Safety

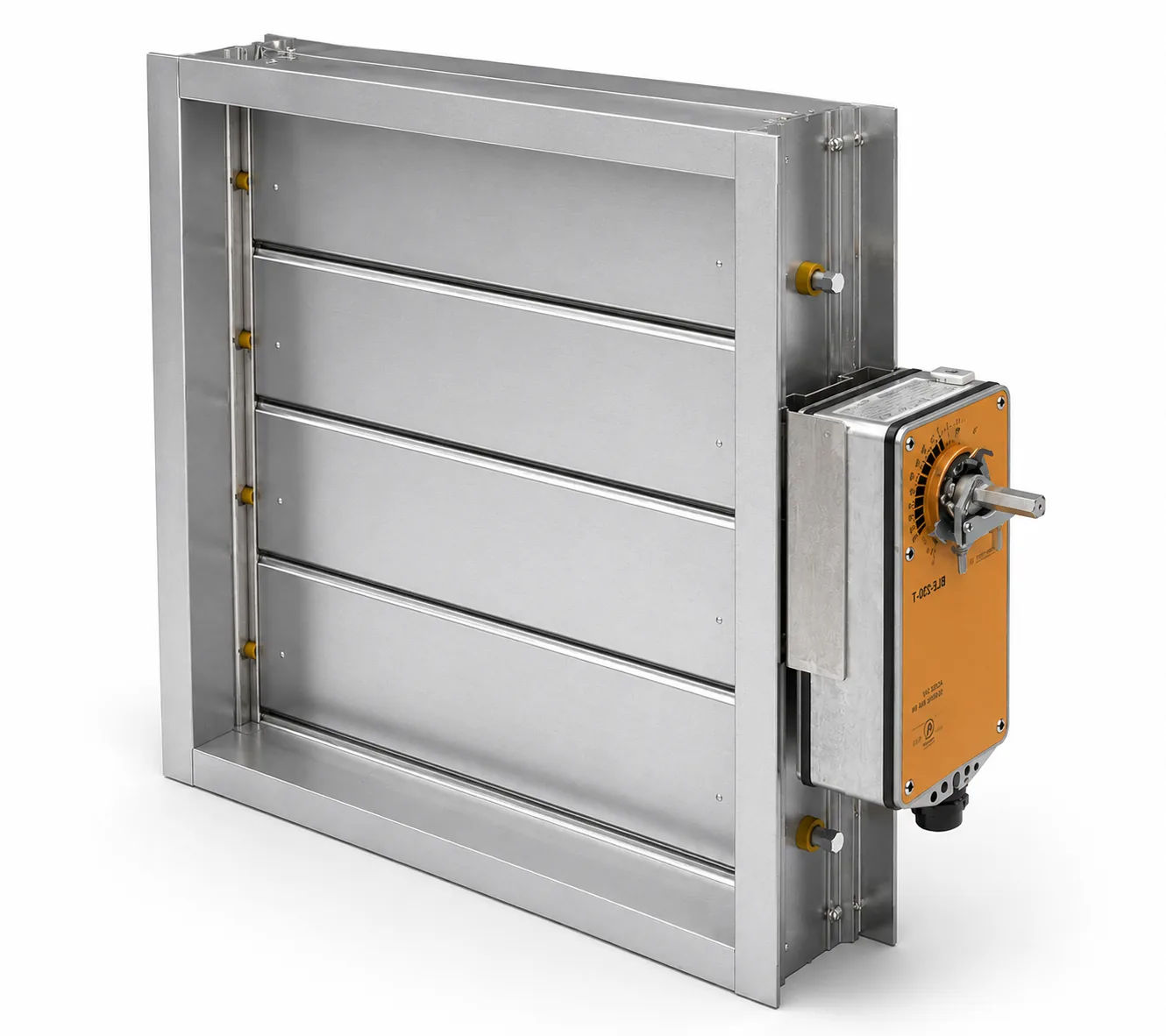

Smoke / Ventilation Damper
Smoke Control & Stairwell Pressurization
Dedicated smoke-management dampers for stairwell pressurization, smoke-extract shafts and car-park ventilation, with fail-safe motorized actuation and position feedback.
Control

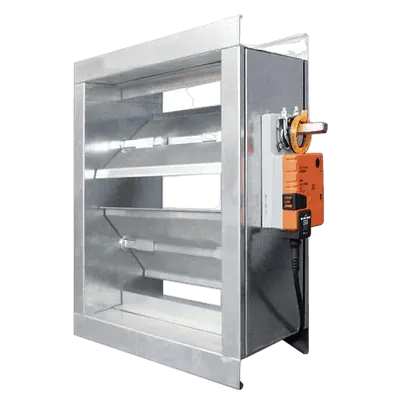

Motorized Actuated Control Damper
BMS-Integrated Actuator Package
Control dampers factory-fitted with electric or pneumatic actuators (Belimo / Honeywell) for BMS-driven modulation and two-position control, with optional spring-return fail-safe.
Life Safety
Tunnel Ventilation Damper
High-Temperature Smoke & Airflow Control for Tunnels
Heavy-duty dampers for metro and road-tunnel ventilation — smoke extraction, cross-passage isolation and shaft ventilation — rated for high temperature and high air velocity.
Technical Specifications
Standard parameters. All products manufactured to custom specifications upon requirement.
| Fire Rating | 1.5 Hr / 3 Hr (UL 555) |
| Smoke Classification | Class I / Class II (UL 555S) |
| Frame Material | Galvanized steel 1.6–3.0mm |
| Blade Material | Galvanized / Stainless steel |
| Actuator | Spring-return, 24V / 230V AC, fail-safe |
| Max Duct Size | 2400mm × 2400mm (custom) |
| Leakage Class | Class II, Class III per EN 13030 |
Standards & Compliance
- UL 555 Standard for Fire Dampers
- UL 555S Standard for Smoke Dampers
- IS 3103 Industrial Ventilation — Code of Practice
- NFPA 92 Standard for Smoke Control Systems
- NBC 2016 National Building Code of India — Fire & Life Safety
Key Applications by Sector
Key Advantages
What makes KBG hvac dampers the specification-grade choice for consultants, EPC contractors and procurement teams.
Fire, Smoke & Volume Control Damper Manufacturer — India Supply
KBG Group is a factory-based fire damper and volume control damper manufacturer in India, supplying UL 555 / UL 555S-rated fire and smoke dampers, motorised and volume control dampers for HVAC life-safety in metro, airport and commercial projects.
Dampers are built to project schedules with actuator sizing, leakage classification and commissioning support, delivered pan-India and to the GCC with full submittal documentation for consultants and EPC contractors.
Request a quote or specification support →
Fire & smoke damper specification for India →
Why specify KBG
- Made in India In-house manufacturing, Mumbai
- ISO 9001:2015 Certified quality system
- Project Supply Custom-engineered to drawings
- India + GCC Pan-India delivery & export
- Test Data Full submittal & certification
HVAC Dampers — FAQs
Selection guidance and common specification questions for consultants, contractors and procurement teams.
What types of damper does KBG manufacture?
Opposed- and parallel-blade volume-control dampers (VCD), motorised and fusible-link fire dampers, combined fire/smoke dampers, back-draught (non-return) dampers and gas-tight isolation dampers for industrial ducts.
What is the difference between an opposed-blade and a parallel-blade damper?
Opposed-blade dampers give more linear, stable flow control and are preferred for balancing and modulation; parallel-blade dampers are typically used for open/close isolation. We advise the type based on whether the duty is control or shut-off. Our volume control damper selection & balancing guide covers blade type, leakage class and damper authority in detail.
Which standards do your fire and smoke dampers meet?
Fire dampers are built and rated to recognised fire-test standards (e.g. UL 555 / relevant IS) for the required fire rating, with fusible-link or motorised actuation and factory leakage testing.
Do you provide actuators and control accessories?
Yes. Dampers can be supplied with manual quadrants, or with modulating/spring-return actuators and end-switches, so they integrate directly with the BMS.
Request a Technical Quotation
Provide your duct schedule and fire-zoning drawings for compliant damper sizing and submittal documentation.
