Ventilation Louvers & Louvered Systems
Engineered aluminium and galvalume ventilation louvers tested to EN 13030 and AMCA 500-L. Water rejection efficiencies up to 99% at design wind velocities. Available in custom blade profiles, anodized or powder-coated finishes, from 600mm to 3600mm width.
Industrial
PEB Industrial Shed Louvers
Heavy-Duty Ventilation for Pre-Engineered Buildings
Designed to withstand harsh weather while ensuring continuous airflow in manufacturing facilities and industrial warehouses.
HVAC
Fixed Ventilation Louvers
Stationary Blade Systems with Water Drainage
Consistent ventilation with built-in water drainage channels. Ideal for commercial HVAC applications requiring reliable weather protection.
Motorized

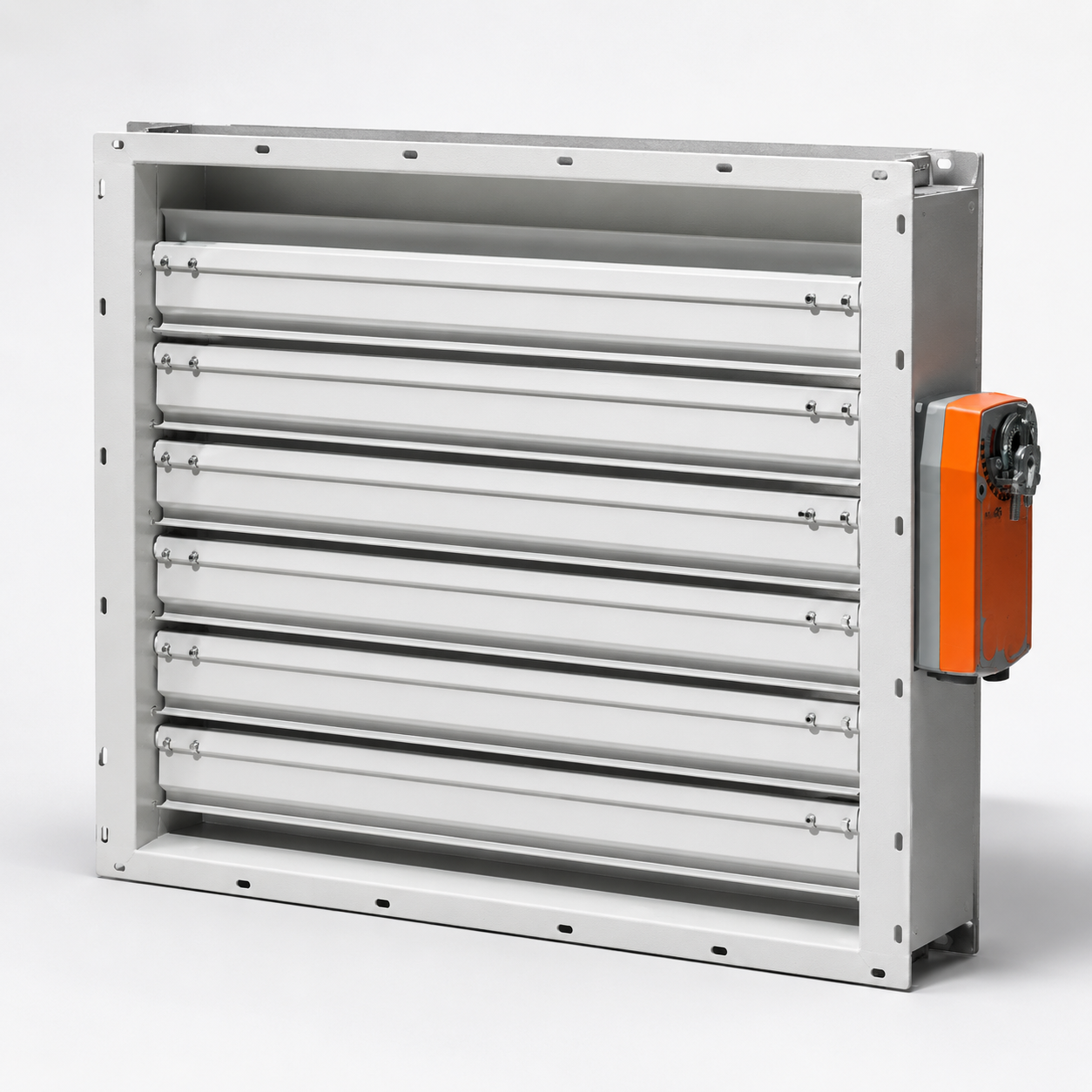

Heavy Duty Louvers
Motorized or Manual Blade Control
Variable airflow regulation with motorized or manual blade control. Perfect for buildings requiring dynamic ventilation management and energy efficiency.
Acoustic
Acoustic Louvers
Sound-Attenuating Ventilation Systems
Combines airflow efficiency with superior acoustic performance for noise-sensitive environments like hospitals, data centers, and studios.
Desert
Sand Trap Louvers
Specialized Blade Geometry for Arid Regions
Prevents sand and dust ingress in desert environments. Essential for Middle East projects and industrial sites in arid regions.
Storm Rated
Storm Resistant Louvers
High-Wind Rated for Cyclone & Hurricane Zones
Tested for hurricane and cyclone zones. Engineered for coastal installations requiring maximum weather protection against extreme conditions.
Rainproof
Gravity Louvers
Multi-Stage Water Separation with Internal Drainage
Prevents water penetration in high-rainfall areas while maintaining airflow efficiency. Internal drainage gutters ensure superior performance.
Architectural
Non Vision Louvers
Equipment Screening with Ventilation Performance
Architectural louvers for rooftop mechanical equipment screening. Combines ventilation performance with clean aesthetics for commercial.
Dual Purpose
Aluminium Intake/Exhaust Louvers
Separate Intake & Exhaust Sections
Dual-purpose systems maximizing ventilation efficiency for mechanical rooms and equipment enclosures. Lightweight aluminium construction.
All LOUVERS CERTIFIED
Every louver system is tested and certified by BS Standards for air performance, water penetration resistance, and structural integrity. Available in custom sizes with powder coating, anodizing, or mill finish options.
Technical Specifications
Standard parameters — all products manufactured to project-specific custom dimensions.
| Primary Material | Aluminium 6063-T6 / Galvanized / Galvalume® |
| Blade Thickness | 0.5mm – 4mm (material specific) |
| Frame Depth | 50mm – 300mm (application specific) |
| Max Section Width | Up to 1200mm (modular assembly) |
| Water Penetration | Zero penetration at ≤4 m/s (EN 13030) |
| Air Resistance Class | A–E per EN 13030 |
| Surface Finish | Powder coated (RAL), Painted, Mill finish |
| Fastening | Concealed clip / Structural sealant / Bolt-fixed |
Standards & Compliance
- AMCA 500-L Louver Air & Water Performance Rating
- EN 13030 Air Performance — Water Penetration Testing
- EN 13030 Air Terminal Performance Classification
- IS 875 Pt.3 Wind Load Compliance
- ISO 9001:2015 Quality Management System
Applications by Sector
Key Advantages
What makes KBG ventilation louvers the specification-grade choice for consultants, EPC contractors and procurement teams.
Aluminium Ventilation Louvers — FAQs
Selection guidance and common specification questions for consultants, contractors and procurement teams.
What free area do KBG ventilation louvers provide?
Free area depends on the blade model. Single-bank weather louvres typically deliver 45–55% free area, while deeper performance banks trade some free area for better water rejection. Because our performance range is lab-tested to BS EN 13030, the free area is published per model rather than estimated, so consultants can size openings accurately.
What does BS EN 13030 testing mean and which class do your louvers meet?
BS EN 13030 is the European standard that rates louvres for water rejection (Class A–D) and airflow/pressure performance under controlled rain and wind. Our performance louvers are tested at a NABL-accredited laboratory to Class B water penetration at defined face velocities, and the test certificate is available on request.
How do I choose between a weather louvre and an acoustic louvre?
A weather louvre prioritises water rejection and maximum free area. An acoustic louvre adds a lined splitter that attenuates noise — measured as insertion loss in dB across octave bands — at the cost of some free area and a higher pressure drop. Choose acoustic where plant-room or intake/exhaust noise must be controlled at the façade.
What blade depths and finishes are available?
We manufacture 50 mm, 75 mm and 100 mm blade systems; deeper blades improve both water rejection and acoustic performance. Finishes include mill, powder-coat (any RAL) and architectural PVDF for coastal and high-durability applications.
Are the louvers suitable for metro and coastal projects?
Yes. We supply EN 13030 and AMCA 500-L tested louvers for metro HVAC, and sand-trap and storm-resistant variants for coastal and desert environments. Marine-grade aluminium with PVDF coating is specified where corrosion resistance is critical.
Require AMCA-Compliant Ventilation Louvers for Your Project?
Submit your project specifications — our engineers will recommend the correct louver series, blade depth, and free area percentage for your airflow and water rejection requirements.
